NEW Products

IMS Variable Chip Attenuators

IMS Variable Chip Attenuators

 Precision thin film attenuator element
• 96% Al2O3 substrate material
• Nickel barrier layer for excellent solder leach resistance
• Ultra low noise attenuator element
• Characterized to 5GHz
• 1.3:1 Nominal VSWR
• Nine different temperature characteristics
• Stable characteristics over temperature and time
• Polyimide passivation of attenuator element


IMS Thin Film Attenuators

IMS Variable Chip Attenuators

  Precision thin film attenuator element
• 96% Al2O3 substrate material
• Nickel barrier layer for excellent solderability and mechanical integrity
• Ultra low noise attenuator element
• Excellent high frequency performance
• Low inductance and parasitic capacitance
• Stable characteristics over temperature and time
• Polyimide passivation of attenuator element



IMS High Power Thick Film Attenuators

IMS 6dB thick Film Resistive Power Splitter

 Value Range: 0dB, 1dB  to 30dB
Standard Impedance: 50Ω Nominal
DC Attenuation Stability: .0001 dB/ dB/ deg. C
Operating Temperature: -55 deg. C to 150 deg. C
Architecture: Thick Film on Aluminum Nitride



IMS 6dB thick Film Resistive Power Splitter

IMS 6dB thick Film Resistive Power Splitter



Attenuation (by design): 6dB each output
Attenuation Accuracy (by design): ± 0.5dB
Operating Frequency:  DC to 20GHz
Input Power Rating: 1W
Load Power Rating: 0.5W
Operating Temperature: -55°C to +150°C
VSWR (Max): 1.3:1
Impedance: 50Ω or 75Ω in/out standard
Architecture: Thick Film on 96% Alumina (Al2O3)
Dimensions: 0.098″ x 0.098″ x 0.020″ Max


IMS SMD Thick Film Attenuators

 Impedance: 50Ω Nominal
VSWR (Max): 1.25:1 up to 4 GHz, 1.35:1 @ 4 to 8 GHz, 1.50:1 @ 8 to 12 GHz
DC Attenuation Stability: .0001 dB/ dB/ deg. C *
Power Rating: 2W (metalized baseplate maintained below 100° C)
Operating Temperature: -55 deg. C to 150 deg. C
Frequency Range: DC – 12.4 GHz
Standard Case Size: 0.122” X 0.145” X 0.028” Max
Architecture: Thick Film on 96% Alumina (Al2O3)

XMicrowave VPX



OpenVPX and SOSA-Aligned VPX Card Assemblies




Rugged 3U OpenVPX Card Assembly




Double Sided for Dense Circuit Integration






NEW Products

Vertical Microwave Connectors to 110 GHz

Southwest Microwave solderless Vertical launch connectors with VSWR max of 1.25:1  !!!

1.0mm, 1.85mm, 2.92mm now available

Compression mount (No soldering required)

Contact proud of flange (no spring)

Boards as thin as .005” (0.127 mm)

Re-usable

Microstrip or Coplanar

Supplied with or without screws

Broadband through frequency range

Board layouts or HFSS files available


End Launch Microwave Connectors to 110 GHz

SuperSMA, 2.92mm, 2.4mm. 1.85mm, 1.0 mm with VSWR's down to 1.10:1

and now in narrow block  !


and now New Thread-in end launch for 2.4 and 2.9mm!

www.southwestmicrowave.com



Custom Multi Pin SSBB connectors

Field Replaceable and 38999 SSBP Microwave Cables up to 110 GHz

Need board to board or connector multipin connections with great performance up to 110 GHz? Call me!

972-679-5871

Skype:Biggsassociates

Field Replaceable and 38999 SSBP Microwave Cables up to 110 GHz

Field Replaceable and 38999 SSBP Microwave Cables up to 110 GHz

www.ba-sales.com

Skype:Biggsassociates


SSBP to 67 GHz using 38999 or DSub type standard connectors

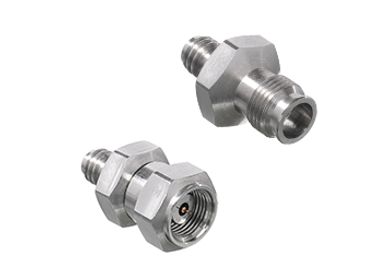

1.35 to 1.0mm Adapters

 1.35mm to 1.0mm female to female model #222410-00SF and male to female model #222410-00SF.

XMicrowave blocks

Xmicrowave now has over 5000+ different Microwave component boards ready for your use from all Microwave Component manufacturers

Fast development for microwave circuits! Call to set up an online meeting!

972-679-5871

www.xmicrowave.com

Custom Products

Amplifiers

Multipliers

Amplifiers

 Xmicrowave can provide the amplifiers you need up to 90 GHz including new GaN amps


www.xmicrowave.com


Isolators

Multipliers

Amplifiers

 XMicrowave can provide microwave subsystems up to 90 GHz

Multipliers

Multipliers

Multipliers

custom designed multipliers


www.xmicrowave.com

Gigatronix

RF Cables

Raw RF/MicrowaveCable

Raw RF/MicrowaveCable

RF to Microwave Cables to 67 GHz with online cable drawing

Raw RF/MicrowaveCable

Raw RF/MicrowaveCable

Raw RF/MicrowaveCable

Low Loss LBC,Micro Coax, RGXXX,and SR all sizes

Feature something

Raw RF/MicrowaveCable

Feature something

IPX/UFLmicro coaxial cable assemblies

Winslow ADAPTICS

Test Sockets

 Both Standard and Custom designed sockets

www.winslowadaptics.com

 QFP,TSOP, DIP

Obsolescent Socket No problem we can make it again

Obsolescent Socket No problem we can make it again

.

small to large packages

small to large packages

Obsolescent Socket No problem we can make it again

can even do component sockets

TSOP to DIP ?Yes we can

small to large packages

TSOP to DIP ?Yes we can

also known as aircraft carrier to accommodate older designs with newer parts

small to large packages

TSOP to DIP ?Yes we can

design, and build in rapid lead times
